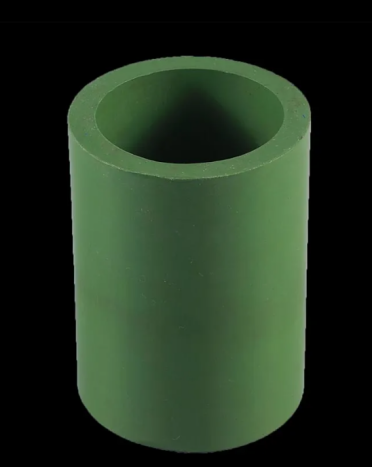

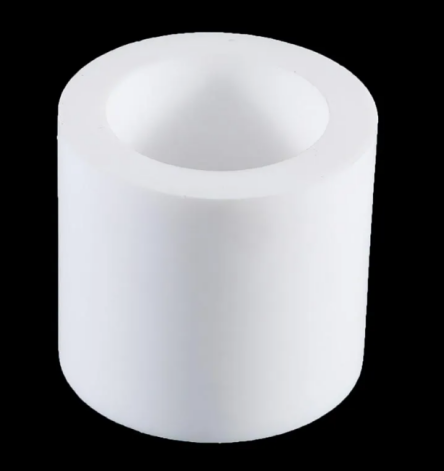

PTFE Tube is a high-performance fluoropolymer conduit extruded from 100 % virgin polytetrafluoroethylene resin. Its microporous, non-reactive structure delivers the lowest coefficient of friction in any engineering plastic, combined with universal chemical inertness and an extreme temperature span, making PTFE tube the first-choice transfer line for aggressive chemicals, ultra-pure fluids, and high-temperature gases in chemical, pharmaceutical, food, semiconductor, and analytical industries.
One of the key advantages of PTFE Tube is its exceptional chemical resistance. The fully fluorinated backbone is virtually unaffected by acids, bases, oxidizers, solvents, fuels, or chlorinated media across the entire pH spectrum, allowing safe handling of HF, fuming HNO₃, acetone, and strong caustics without swelling, cracking, or contamination. Additionally, it retains full mechanical integrity from cryogenic –200 °C to continuous +260 °C (short peaks to +300 °C), eliminating the need for multiple materials in thermal-cycling processes.
The ultra-smooth, hydrophobic bore (Ra ≤ 0.05 µm) prevents bio-film build-up and minimizes pressure drop, while the non-stick surface enables easy cleaning/sterilization by steam, CIP/SIP, or solvent flush. These characteristics meet FDA, USP Class VI, and EU 10/2011 requirements for high-purity water, WFI, and food-grade transfer.
PTFE Tube also offers outstanding dielectric properties (dielectric strength ≥ 60 kV/mm) and flame resistance (UL 94 V-0), making it ideal for insulating high-voltage wiring or fiber-optic bundles in aerospace and down-hole tools. The material’s excellent flex-fatigue life allows tight routing in instrument panels and robotic arms without kinking or collapse.
Another advantage is its fabrication versatility. Standard sizes range from 0.2 mm ID to 100 mm OD in smooth-bore, convoluted, or braided-reinforced constructions; custom colors, anti-static grades, and laser-markable surfaces are available for rapid system identification. The tube can be flared, formed, or over-molded into sterile connectors within minutes, eliminating adhesive bonding or curing delays.
Overall, PTFE Tube delivers unmatched chemical inertness, thermal stability, and flow purity, making it a reliable, maintenance-free solution for critical fluid, gas, and electrical protection in the most demanding industrial and life-science applications.
